ASSH580D , Spring loaded gas hose reel with dual pedestal, heavy duty. External spring design,easy to change a new Spring to extended service life. Compact frame and narrow base for maximum use of available space. Finished with 30m hoses.
Gas hose reel handles hose lengths up to 100 feet(30m).The quiet speed latch mechanism offers quiet operation combined with latch cam technology insuring longer latching life and trouble-free performance.
Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.
FEATURES
● Dual pedestal, heavy duty.
● External spring design,easy to change a new Spring to extend service life.
● Reel drive springs manufactured from high-quality, scaleless blue tempered steel.
● Anti-lockout design：Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
● Superior performance：Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability.
● Corrosion resistant: Sealed bearings prevent contamination and minimize maintenance.
● Easy installation and maintenance：Factory lubricated one-piece power spring cassette make installation safer and maintenance easier.
● Adjustable and Versatile：Guide arm adjust to wall,floor,vehicle, overhead positions. Narrow design allows for maximum use of available space.

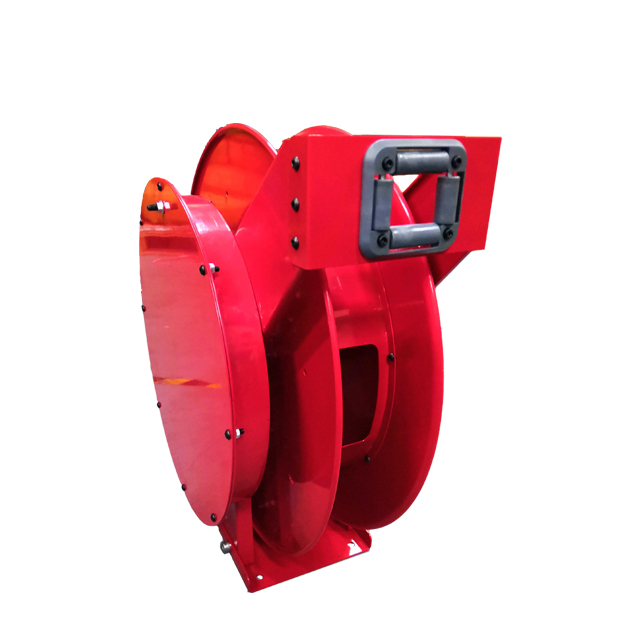

Gas hose reel | Spring loaded hose reel ASSH580D PICTURE

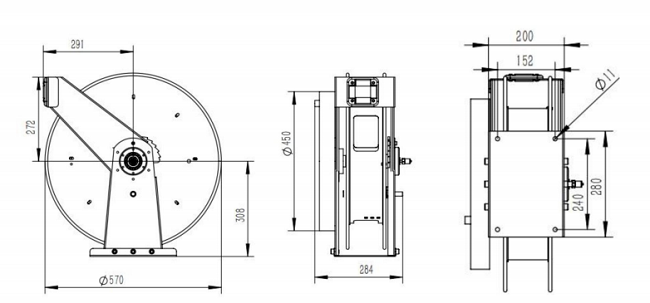

DIMENSIONS
P/N | Port&core number | HOSE-ID. or CABLE-square | Pressure or Imax | Working Length | Reel inlet | Hose outlet | A | B | C | D | E | F | G | H | I | J | K |
ASSH580D0103200030 | 1 | 3/8" | 20Mpa | 30m | BSPT3/8“.F | BSPT3/8“.M | 570 | 400 | 593 | 284 | 576 | 200 | 280 | 152 | 240 | 4 | 11 |
External spring design | Dimensions are in millimeters |
|
Note:Consult us for other products and hoses.
SPECIFICATIONS
Part number: ASSH580D
HOSE-ID. or CABLE-square ：3/8"
Pressure or Imax：20MPA
Working Length: 30M
Reel inlet: BSPT3/8“.F
Hose outlet: BSPT3/8“.M
APPLICATIONS
● Air/water services
● Manufacturing Plants & Facilities
● Pneumatic Tools
● Washdown
● Maintenance,Repair &Operations
● Lubrication
● Chemical Fluid Transfer
● Automotive &Fleet Service Centers
OUR CAPABILITIES
● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.
● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.
● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.
● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.
PDF CATALOGUE
Gas hose reel Auto wind hose reel ASSH580D.pdf
QUALITY CONTROL
● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.
● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.
● File system: perfect file system, products traceability;
● Engineer participation: The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.
