Economical hose reel | Cheap hose reel ASSH390D

Spring retractable Economical hose reel with dual pedestal-style arms,Neverleak ,very robust and ideal for the most demanding application.
  • ASSH390D

  • SUPERREEL

Availability:

ASSH390D,Spring retractable , Economical hose reel design for applications that are less demanding,yet require a product that can withstand industrial use.


Cheap hose reel also with dual pedestal, full flow shaft and swivel. Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability. Sealed bearings prevent contamination and minimize maintenance.


Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.


Economical hose reel | Cheap hose reel design


FEATURES

● Dual pedestal, heavy duty.

● Full flow shaft and swivel.

● Reel drive springs manufactured from high-quality, scaleless blue tempered steel.

● Anti-lockout design:Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.

● Superior performance:Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability.

● Corrosion resistant: Sealed bearings prevent contamination and minimize maintenance.

● Easy installation and maintenance:Factory lubricated one-piece power spring cassette make installation safer and maintenance easier.

● Adjustable and Versatile:Guide arm adjust to wall,floor,vehicle, overhead positions. Narrow design allows for maximum use of available space.

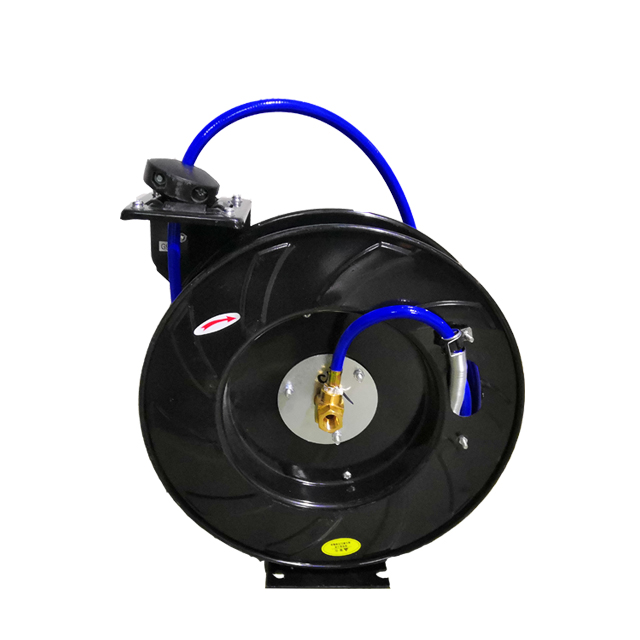

Economical hose reel | Cheap hose reel ASSH390D PICTURE

Economical hose reel | Cheap hose reel ASSH390D PICTURE


DIMENSIONS

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Hose outlet

A

B

C

D

E

F

G

H

I

J

K

ASSH390S0101016010

1

1/4"

1.6Mpa

20m

BSPT1/4“.F

BSPT1/4“.M

390

175

430

210

390

95

141

77

118

4

9


Dimensions are in millimeters

Note:Consult us for other products and hoses.


SPECIFICATIONS

Part number: ASSH390D

HOSE-ID. or CABLE-square :1/4"

Pressure or Imax:1.6MPA

Working Length: 20M

Reel inlet: BSPT1/4“.F

Hose outlet:BSPT1/4“.M


APPLICATIONS

● Industrial

● Manufacturing Plants & Facilities

● Pneumatic Tools

● Washdown

● Maintenance,Repair &Operations

● Lubrication

● Chemical Fluid Transfer

● Automotive &Fleet Service Centers

● Air & Water


Economical hose reel | Cheap hose reel application


OUR CAPABILITIES


Economical hose reel | Cheap hose reel certificate


● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


PDF CATALOGUE

Economical hose reel  Cheap hose reel ASSH390D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
