Industrial Harbor freight power hose reel AESH900D

Motor driven auto rewinding harbor freight hose reels are designed for rugged,heavy duty applications requiring long lengths of hose and large storage capacity.
  • AESH900D

  • SUPERREEL

  • Harbor freight, aircraft maintenance, Agriculture, Mining, Docks & Marina canters

Availability:

Motor driven industrial harbor freight hose reels are designed for rugged,heavy duty applications requiring long lengths of hose and large storage capacity. Full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life.

Harbor freight reels are designed with large-diameter hose reel, 1.5 inch 20 meters horizontal reciprocating use, used for coal, fly ash, limestone and other dust-prone loading and unloading equipment, ship spraying and dust removal.


Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.

Industrial Harbor freight power hose reel design


FEATURES

● Heavy-duty.  All-steel construction.

● High pressure.  Large frame design, large storage capacity. Full flow shaft and swivel.

● Rugged construction:Steel drum and all bolted construction.

● Dimensional flexibility: Specify height, width and depth dimensions to fit your space requirement.

● Low maintenance: Dual main bearings never need lubrication.

● Shipped completely assembled, ready to install.


Harbor freight hose reel | Industrial hose reel AESH900D PICTURE

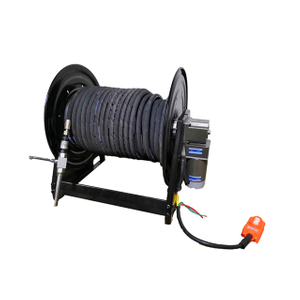

Industrial Harbor freight power hose reel picture


DIMENSIONS


AESH900D specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Hose outlet

A

B

C

D

E

F

G

H

I

J

K

AESH900D0108016060

1

1-1/4"

1.6Mpa

60m

BSPT1-1/4"“.F

BSPT1-1/4"“.M

900

380

995

1015

900

819

772

781

584

4

11

AESH900D0109016060

1

1-1/2"

1.6Mpa

60m

BSPT1-1/2"“.F

BSPT1-1/2"“.M

900

380

995

1015

900

819

772

781

584

4

11

AESH900D0110016050

1

2"

1.6Mpa

50m

BSPT2"“.F

BSPT2"“.M

900

380

995

1015

900

819

772

781

584

4

11

AESH900D0111016050

1

2-1/2"

1.6Mpa

50m

BSPT1-1/2"“.F

BSPT1-1/2"“.M

900

380

995

1015

900

819

772

781

584

4

11


Dimensions are in millimeters

Note:Consult us for other products and hoses. Roller guides, limit device, remote control, speed control, automatic pipe arrangement and voltages (standard is 220VAC) are optional items.


SPECIFICATIONS

Part number: AESH900D

HOSE-ID. or CABLE-square :1-1/4",1-1/2",2",2-1/2"

Pressure or Imax:1.6MPA

Working Length: 60M

Reel inlet: BSPT1-1/4"“.F

Hose outlet:BSPT1-1/4"“.M


APPLICATIONS

● Harbor freight

● Service vehicles

● aircraft maintenance

● Agriculture

● Greenhouse

● Firefighting

● Mining

● Docks & Marina canters

● Automotive & Fleet Service Centers

Industrial Harbor freight power hose reel application


OUR CAPABILITIES


Industrial Harbor freight power hose reel certificate


● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.



PDF CATALOGUE

Harbor freight hose reel  Auto rewinding hose reel AESH900D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
