Motorized industrial hose and cable Combination reel EEMO660D

Motorized industrial hose and cable Combination reel resulting in a wide range of choices for our application. 2,3,4 or more port hydraulic hoses and one multi-core cablel combined.
  • EEMO660D

  • SUPERREEL

  • Railway,Manufacturing Plants, Automotive Service Centers

Availability:

Motorized industrial hose and cable Combination reel,combined reels, resulting in a wide range of choices for our application. Ideal for applications where sapce,weight and flexibility are key,these reels are designed for power winding of air/water/fuel gases hose, electric cord and welding cable.  2,3,4 or more port hydraulic hoses and one multi-core cablel combined.


Motorized industrial hose and cable Combination reel are heavy duty design with dual pedestal,durable abrasion and corrosion resistant baked-on power coat finish.Factory lubricated one-piece power spring cassette make installation safer and maintenance easier.


Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.


Motorized industrial hose and cable Combination reel EEMO660D design


FEATURES

● 2 port,3 port,4 port or more port hydraulic hoses and one multi-core cablel combined.

● Full flow shaft and swivel, high pressure. Large-diameter, Large capacity.

● Silver alloy slip ring. To handle live electric cable/cord.

● Automation, Powered by electric motor. Auto-distribution.

● Superior performance:Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability.

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Rugged construction:Steel drum and all bolted construction. Vibration-proof self-locking fasteners.


Motorized industrial hose and cable Combination reel EEMO660D PICTURE

Motorized industrial hose and cable Combination reel EEMO660D PICTURE

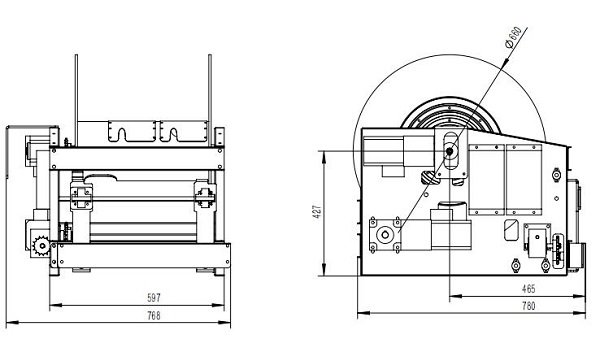

DIMENSIONS

EEMO660D specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Cable outlet

A

B

C

D

E

F

G

H

I

J

K

EEMO660D0405200050

4

1/4"+3*1.5²

20Mpa+10A

50m

BSPT1/4“.F +Bare wire

BSPT1/4“.M +Bare wire

660

200

757

768

780

597

699

568

500

4

13

EEMO660D0505200050

5

1/2"+4*1.5²

20Mpa+10A

50m

BSPT1/2“.F +Bare wire

BSPT1/2“.M +Bare wire

660

200

757

768

780

597

699

568

500

4

13

220VAC, Working Length more than 50 meters,only supports mobile installation

Dimensions are in millimeters

Note:Consult us for other products and hoses


SPECIFICATIONS

Part number: EEMO660D

HOSE-ID. or CABLE-square :1/4"+3*1.5², 1/2"+4*1.5²

Pressure or Imax:20MPA+10A

Working Length: 50M

Reel inlet: BSPT1/4“.F +Bare wire, BSPT1/2“.F +Bare wire

Hose and Cable outlet:BSPT1/4“.M +Bare wire, BSPT1/2“.M +Bare wire


APPLICATIONS

● Railway deicing

● Electromagnetic hydraulic cylinder

● Manufacturing Plants & Facilities

● Pneumatic Tools

● Maintenance,Repair &Operations

● Automotive &Fleet Service Centers

● Aircraft maintenance

● Electric tools

● Construction sites


Motorized industrial hose and cable Combination reel EEMO660D application


OUR CAPABILITIES


Motorized industrial hose and cable Combination reel EEMO660D certificate


● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


PDF CATALOGUE

Motorized industrial hose and cable Combination reel EEMO660D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
