Small cable reel | Small retractable cord reel ASSC220S

Small spring retractable cable reels ASSC220S

Small spring retractable cable/cord reels ensure your cords are within an arm's reach, but out of the way.By minimizeing the hazard's of dangling electric cords, these reels improve safety, convenience and productivity.

Small cable reels to handle live electric cable/cord via silver alloy slip ring.Compact, Ultralight for critical space requirements.

Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.

FEATURES

● To handle live electric cable/cord.

● Professional grade heavy duty steel construction.

● Silver alloy slip ring.

● IP44, IP54, IP65, IP68 available

● Reel drive springs manufactured from high-quality, scaleless blue tempered steel.

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Adjustable bumper stop allow any desired length of cord or cable to be maintained outside the reel.

● Automatic spring retraction for quick cord rewind.

● Compact, Ultralight for critical space requirements.

Small cable reel | Small retractable cord reel ASSC220S PICTURE

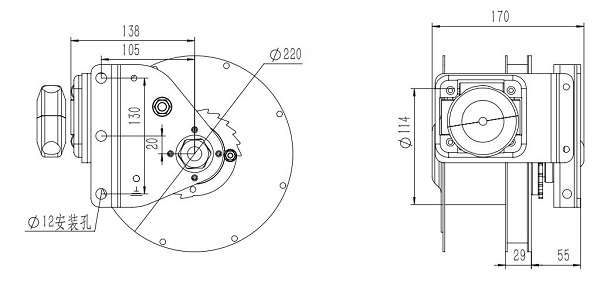

DIMENSIONS

Note:Consult us for other products and reels.

SPECIFICATIONS

Part number: ASSC220S

HOSE-ID. or CABLE-square ：1.5², 2.5²

Pressure or Imax：10A--20A

Working Length: 5M

Reel inlet: Bare wire

Cable outlet:Bare wire

APPLICATIONS

● Industrial plants

● Automotive &Fleet Service Centers

● Tire stores

● Aircraft maintenance

● Electric tools

● Transmission shops

● Light source

● Construction sites

● Garages

OUR CAPABILITIES

● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.

PDF CATALOGUE

Small cable reel Small retractable cord reel ASSC220S.pdf

QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.

FAQ

Q: Are you the manufacturer？

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.

Q: How strong is your product？

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.

Q: How do i get the right reels？

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.

Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.

Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
