Stage cable reel | Studio cable reel | Concert light reel EESC530D

Stage/Studio Live reels integrated with multiple data such as lighting, audio, microphone, HDMI, etc. To achieve simultaneous transmission of multiple data.
  • EESC530D

  • SUPERREEL

  • Stage & studio, Automotive &Fleet Service Centers

Availability:

Stage cable reel | Studio cable reel | Concert light reel EESC530D integrated with multiple data such as lighting, audio, microphone, HDMI, etc. To achieve simultaneous transmission of multiple data.

EESC530D Particularly suitable for the application of stage lighting. Steel drum and all bolted construction. Vibration-proof self-locking fasteners. Low maintenance: Dual main bearings never need lubrication. Compact for critical space requirements.


Stage cable reel | Studio cable reel | Concert light reel design


FEATURES

● To handle live electric cable/cord.

● Automation, Powered by electric motor. Extensible.

● Silver alloy slip ring.

● IP44, IP54, IP65, IP68 available

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Rugged construction:Steel drum and all bolted construction. Vibration-proof self-locking fasteners.

● Low maintenance: Dual main bearings never need lubrication.

● Compact for critical space requirements.

● Shipped completely assembled, ready to install.

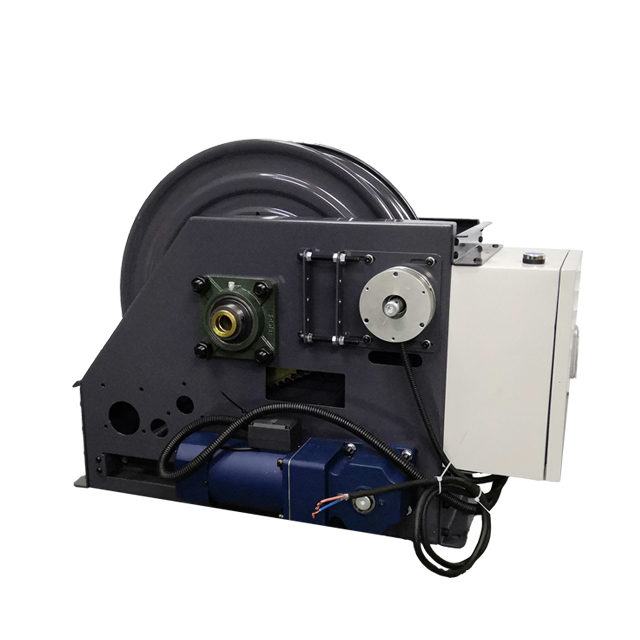

Custom reels -Audio/ Video cable reel-EESC530D picture

Custom reels -Audio/ Video cable reel-EESC530D

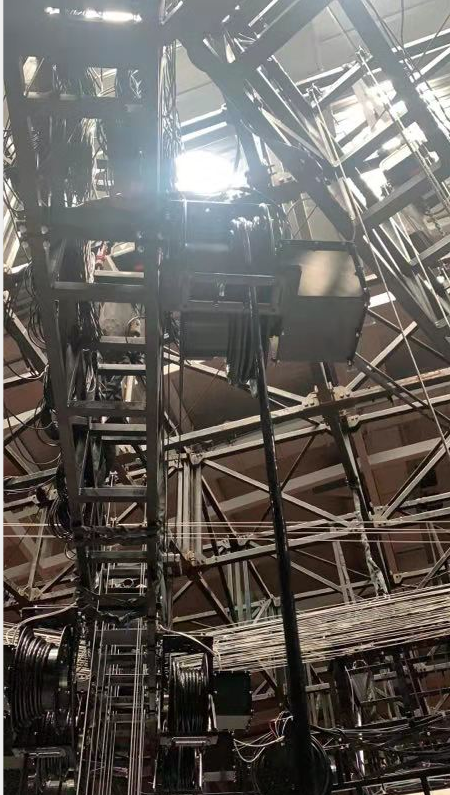

Stage cable reel | Studio cable reel | Concert cable reel EESC530D PICTURE

Stage cable reel | Studio cable reel | Concert cable reel EESC530D PICTURE


DIMENSIONS

EESC530D specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Cable outlet

A

B

C

D

E

F

G

H

I

J

K

EESC530D2405010030

24

1.5²

10A

30m

Bare wire

Bare wire

530

191

595

680

801

266

690

200

659

4

14

EESC530D0408030030

4

30A

30m

Bare wire

Bare wire

530

191

595

680

801

266

690

200

659

4

14

EESC530D0409050030

4

50A

30m

Bare wire

Bare wire

530

191

595

680

801

266

690

200

659

4

14


Dimensions are in millimeters

Note:Consult us for other products and reels.


SPECIFICATIONS

Part number: EESC530D

HOSE-ID. or CABLE-square :1.5²--6²

Pressure or Imax:10A--50A

Working Length: 30M

Reel inlet: Bare wire

Cable outlet:Bare wire


APPLICATIONS

● Stage & studio

● Automotive &Fleet Service Centers


Stage cable reel | Studio cable reel | Concert light reel application



OUR CAPABILITIES


Stage cable reel | Studio cable reel | Concert light reel certificate



● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


PDF CATALOGUE

Stage cable reel  Studio cable reel  Concert cable reel EESC530D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
