Stainless steel cord reel | Waterproof cable reel AMSC500D

Stainless steel waterproof cable/cord reels replace tangled extension cords and self-retract to increase safety,convenience and productivity.
  • AMSC500D

  • SUPERREEL

Availability:

Stainless steel cord reels replace tangled extension cords and self-retract to increase safety, convenience and productivity.


Waterproof cable reel to handle live electric cable/cord via silver alloy slip ring. Durable abrasion and corrosion resistant baked-on power coat finish. Steel drum and all bolted construction. Vibration-proof self-locking fasteners.


Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.


Stainless steel cord reel | Waterproof cable reel DESIGN


FEATURES

● To handle live electric cable/cord.

● Crank rewind. Power rewind available, consult factory.

● Silver alloy slip ring. Heavy curren, Heavy duty.

● IP44, IP54, IP65, IP68 available

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Rugged construction:Steel drum and all bolted construction. Vibration-proof self-locking fasteners.

● Safe: adjustable spool rotation drag eliminates cord backlash when de-reeling. Lock pin prevents spool rotation when reel is not in use.

● Low maintenance: Dual main bearings never need lubrication.

● Compact for critical space requirements.

● Shipped completely assembled, ready to install.

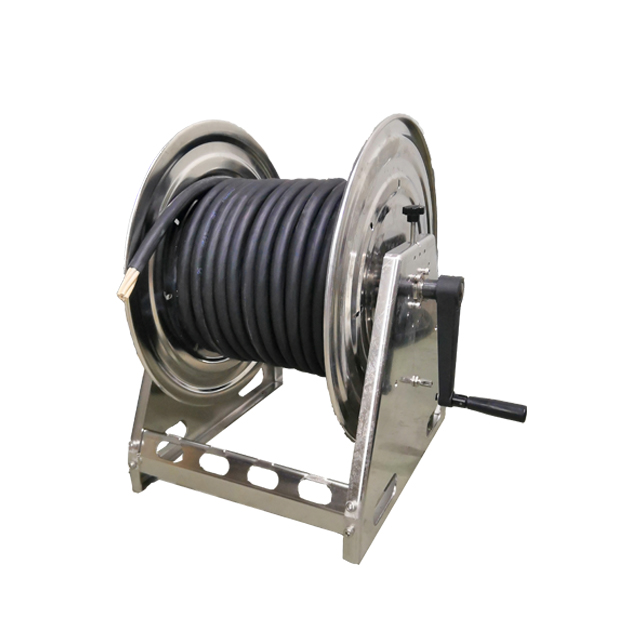

Stainless steel cord reel | Waterproof cable reel AMSC500D PICTURE

Stainless steel cord reel | Waterproof cable reel AMSC500D PICTURE


DIMENSIONS

AMSC500D specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Hose outlet

A

B

C

D

E

F

G

H

I

J

K

AMSC500D1205010060

12

1.5²

10A

60

Bare wire

Bare wire

475

189

560

613

475

386

442

359

320

4

11

AMSC500D0505050060

5

50A

60

Bare wire

Bare wire

475

189

560

613

475

386

442

359

320

4

11

AMSC500D0405065060

4

10²

65A

60

Bare wire

Bare wire

475

189

560

613

475

386

442

359

320

4

11

AMSC500D0405091050

4

16²

91A

50

Bare wire

Bare wire

475

189

560

613

475

386

442

359

320

4

11

AMSC500D0405012040

4

25²

120A

40

Bare wire

Bare wire

475

189

560

613

475

386

442

359

320

4

11


Dimensions are in millimeters

Note:Consult us for other products and reels.


SPECIFICATIONS

Part number: AMSC500D

HOSE-ID. or CABLE-square :1.5²--25²

Pressure or Imax:10A--120A

Working Length: 60M

Reel inlet: Bare wire

Cable outlet:Bare wire


APPLICATIONS

● Industrial plants

● Automotive &Fleet Service Centers

● Tire stores

● Aircraft maintenance

● Electric tools

● Transmission shops

● Light source

● Construction sites

● Garages


Stainless steel cord reel | Waterproof cable reel application


OUR CAPABILITIES


Stainless steel cord reel | Waterproof cable reel certificate


● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


PDF CATALOGUE

Stainless steel cord reel Waterproof cable reel AMSC500D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
