Static discharge cable reel | Grounding cable reel ASSR300S

Static discharge / Grounding cable reels dissipate static electric buildup, reducing the chances of sparking and the potential for explosion.

  • ASSR300S
  • SUPERREEL

Static discharge cable reels are used to ground equipment operating in hazardous atmosphere. When properly clamped to ground, the static discharge reel dissipates static electric buildup, reducing the chances of sparking and the potential for explosion. Also used as Tool balancers,they make tools nearly weightless, reduce fatigue.

Grounding cable reels are built heavy duty and designed for long lasting performance.They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.


OUR CAPABILITIES

● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


Static discharge reels | Tool balancers ASSR300S

Static discharge reels | Tool balancers ASSR300S

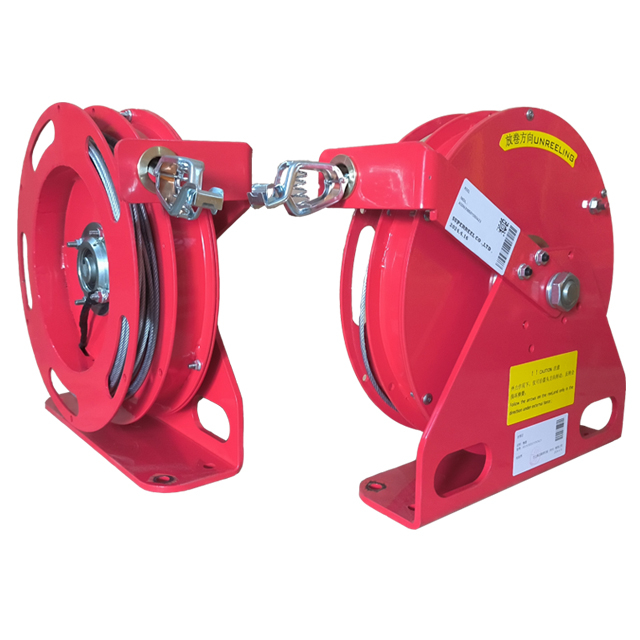

Static discharge cable reel | Grounding cable reel ASSR300S PICTURE

Static discharge cable reel | Grounding cable reel ASSR300S PICTURE


FEATURES

● Static discharge, balancer, Ground connector

● Professional grade heavy duty steel construction.

● Reel drive springs manufactured from high-quality, scaleless blue tempered steel.

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Multi-position non-sparking lock ratchet mechanism secures cable at desired length.

● Automatic spring retraction for quick cable rewind.

● Compact, Ultralight for critical space requirements.


APPLICATIONS

● Fuel/ Service truck

● Fuel storage & Dispensing systems

● Ground support

● Aviation static grounding

● Oil refinery

● Vehicle refueling

● Aviation refueling


SPECIFICATIONS

Part number: ASSR300S

HOSE-ID. or CABLE-square :1/4",1.5²

Pressure or Imax:10KG,10A

Working Length: 15M

Reel inlet: //

Wire outlet: clasp,clamp


DIMENSIONS

ASSR300S specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

wire outlet

A

B

C

D

E

F

G

H

I

J

K

ASSR300S0201010015

1

1/4"

10KG

15m

/

clasp

300

150

369

154

300

85

300

45

260

4

11

ASSR300S0205010015

1

1.5²

10A

15m

/

clamp

300

150

369

154

300

85

300

45

260

4

11

Dimensions are in millimeters

Note:Consult us for other products and reels.


PDF CATALOGUE

Static discharge cable reel  Grounding cable reel ASSR300S.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
