Steel cable reel | Harbor freight cord reel ESSC500D

Automation spring retractable steel cable/cord reels replace tangled extension cords and self-retract to increase safety,convenience and productivity.

  • ESSC500D
  • SUPERREEL

Automation spring retractable Steel cable/cord reels replace tangled extension cords and self-retract to increase safety,convenience and productivity.

Harbor freight reels are designed with silver alloy slip-ring,large-diameter hose reel, 1.5 inch 20 meters horizontal reciprocating use, used for coal, fly ash, limestone and other dust-prone loading and unloading equipment, ship spraying and dust removal. Currently serving in Dalian, Shanghai and Ningbo ports.

Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.


OUR CAPABILITIES

● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.

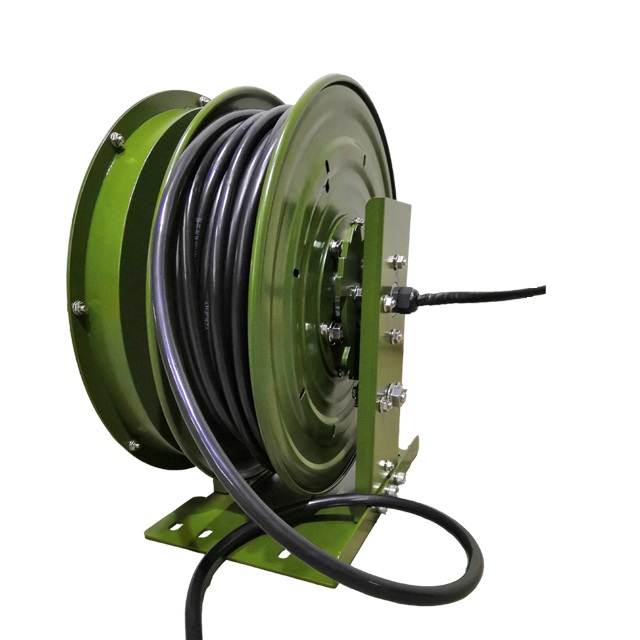

Auto Spring retractable cable reels ESSC500D

Auto Spring retractable cable reels ESSC500D

CABLE REEL SLIPRING DESIGN


ESSC500D slip ring

Steel cable reel | Harbor freight cord reel ESSC500D PICTURE

Steel cable reel | Harbor freight cord reel ESSC500D PICTURE


FEATURES

● To handle live electric cable/cord.

● Professional grade heavy duty steel construction. High Power.

● Silver alloy slip ring.

● Reel drive springs manufactured from high-quality, scaleless blue tempered steel.

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Adjustable bumper stop allow any desired length of cord or cable to be maintained outside the reel.

● Automatic spring retraction for quick cord rewind.

● Compact for critical space requirements.


APPLICATIONS

● Industrial plants

● Automotive &Fleet Service Centers

● Tire stores

● Aircraft maintenance

● Electric tools

● Transmission shops

● Light source

● Construction sites

● Garages


SPECIFICATIONS

Part number: ESSC500D

HOSE-ID. or CABLE-square :1.5²--50²

Pressure or Imax:10A--500A

Working Length: 20M

Reel inlet: Bare wire

Cable outlet:Bare wire


DIMENSIONS


ESSC500D specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Cable outlet

A

B

C

D

E

F

G

H

I

J

K

ESSC500D0405010020

4

1.5²

10A

20m

Bare wire

Bare wire

475

270

577

348

535

206

275

152

152

4

11

ESSC500D0406020020

4

2.5²

20A

20m

Bare wire

Bare wire

475

270

577

348

535

206

275

152

152

4

11

ESSC500D0408030020

4

30A

20m

Bare wire

Bare wire

475

270

577

348

535

206

275

152

152

4

11

ESSC500D0409050020

4

50A

20m

Bare wire

Bare wire

475

270

577

348

535

206

275

152

152

4

11

ESSC500D0410065015

4

10²

65A

15m

Bare wire

Bare wire

475

270

577

348

535

206

275

152

152

4

11

ESSC500D2005010020

20

1.5²

10A

20m

Bare wire

Bare wire

475

270

577

505

535

206

275

152

152

4

11

ESSC500D0114500020

1

50²

500A

20m

Bare wire

Bare wire

475

270

577

505

535

206

275

152

152

4

11


Dimensions are in millimeters

Note:Consult us for other products and reels


PDF CATALOGUE

Steel cable reel  Harbor freight cord reel ESSC500D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
