Corrosion resistant,stainless steel hose reels are ideal for food processing,pre-rinse,wash down,chemical transfer and industrial-solvent handling.Also suitable for coastal,offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless steel hose reels.
Stainless steel food grade reel with dual pedestal,narrow design,heavy duty,easy installation and detachment for multiple workstation applications. The reel is available for air/water,oil, grease，oxy-acetylene and T grade gas welding hose. Reel handles hose lengths up to 50ft(15m),100 feet（30m). The quiet speed latch mechanism offers quiet operation combined with latch cam technology insuring longer latching life and trouble-free performance. Reels are all-steel construction and compact for applications with critical space requirements.
FEATURES
● Dual pedestal, heavy duty. All-steel construction and a baked-on power cost finish combine.
● Full flow shaft and swivel, high pressure.
● Reel drive springs manufactured from high-quality, scaleless blue tempered steel.
● Anti-lockout design：Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
● Superior performance：Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability.
● Corrosion resistant: Sealed bearings prevent contamination and minimize maintenance.
● Easy installation and maintenance：Factory lubricated one-piece power spring cassette make installation safer and maintenance easier.
● Adjustable and Versatile：Guide arm adjust to wall,floor,vehicle, overhead positions. Narrow design allows for maximum use of available space.

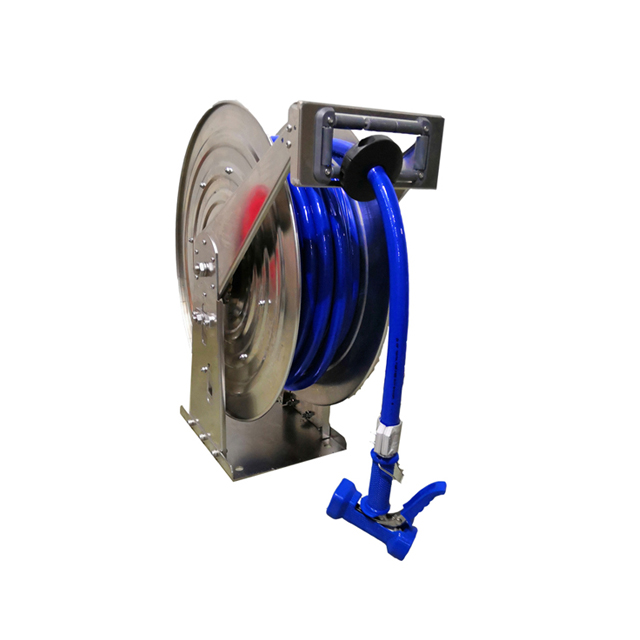

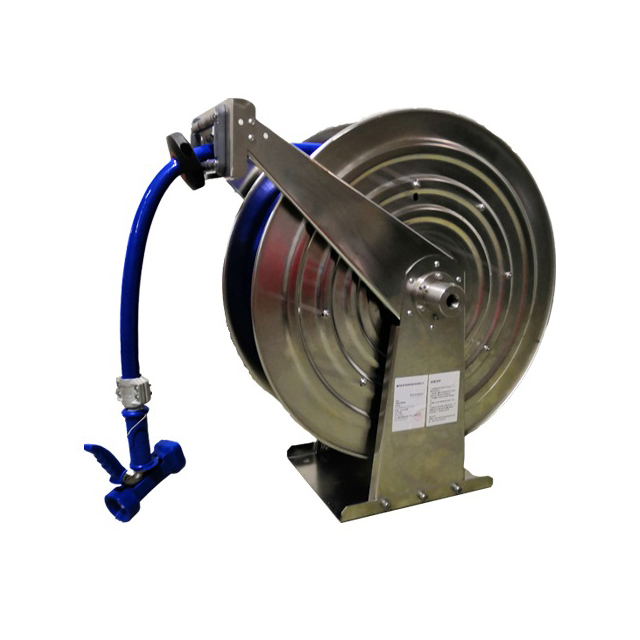

Corrosion resistant hose reel | Free standing 50ft hose reel ASSH660D PICTURE
DIMENSIONS
P/N | Port&core number | HOSE-ID. or CABLE-square | Pressure or Imax | Working Length | Reel inlet | Hose outlet | A | B | C | D | E | F | G | H | I | J | K |
ASSH660D0101300030 | 1 | 1/4" | 30Mpa | 30m | BSPT1“.F | BSPT1/4“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0102300030 | 1 | 5/16" | 30Mpa | 30m | BSPT1“.F | BSPT3/8“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0103300030 | 1 | 3/8" | 30Mpa | 30m | BSPT1“.F | BSPT3/8“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0104300030 | 1 | 1/2" | 30Mpa | 30m | BSPT1“.F | BSPT1/2“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0105300030 | 1 | 5/8" | 30Mpa | 30m | BSPT1“.F | BSPT3/4“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0106300030 | 1 | 3/4" | 30Mpa | 30m | BSPT1“.F | BSPT3/4“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0107016030 | 1 | 1" | 1.6Mpa | 30m | BSPT1“.F | BSPT1“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASSH660D0107300025 | 1 | 1" | 30Mpa | 25m | BSPT1“.F | BSPT1“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
| Dimensions are in millimeters |
|
Note:Consult us for other products and hoses
SPECIFICATIONS
Part number: ASSH660D
HOSE-ID. or CABLE-square ：1/4"--1"
Pressure or Imax：1.6MPA, 30MPA
Working Length: 30M
Reel inlet: BSPT1“.F
Hose outlet: BSPT1/4“.M --BSPT1“.M
APPLICATIONS
● Air/water services
● Manufacturing Plants & Facilities
● Pneumatic Tools
● Washdown
● Maintenance,Repair &Operations
● Lubrication
● Chemical Fluid Transfer
● General Industrial
OUR CAPABILITIES
● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.
● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.
● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.
● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.
PDF CATALOGUE
Free standing hose reel 50 ft hose reel ASSH660D.pdf
QUALITY CONTROL
● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.
● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.
● File system: perfect file system, products traceability;
● Engineer participation: The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.
FAQ
Q: Are you the manufacturer？
A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.
Q: How strong is your product？
A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.
Q: How do i get the right reels？
A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.
2) Do You Need a Storage or Live Reel?
3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.
Rewind options are available for manual, spring, electric, air or hydraulic rewinds.
Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.
4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.
Q: How high should I mount a reel?
A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.
