Garden hose reel | Home depot hose reel AMSH280S

Garden hose reels are designed for lighter-duty applications that require longer lengths of low pressure air/water hose. An economical choice for storing and retrieving hose.

  • AMSH280S
  • SUPERREEL

Garden hose reels are designed for lighter-duty applications that require longer lengths of low pressure air/water hose. An economical choice for storing and retrieving hose.

Home depot hose reel with lighter-duty.  All-steel construction. Durable powder coat finish,full flow shaft and swivel. Adjustable spool rotation drag eliminates hose backlash when de-reeling. Lock pin prevents spool rotation when reel is not in use.



Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.


OUR CAPABILITIES

● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


Hand crank hose reels AMSH280S

Hand crank hose reels AMSH280S

Garden hose reel | Home depot hose reel AMSH280S PICTURE

Garden hose reel | Home depot hose reel AMSH280S PICTURE


FEATURES

● Lighter-duty.  All-steel construction. Durable powder coat finish.

● Full flow shaft and swivel

● Rugged construction:Steel drum and all bolted construction. Vibration-proof self-locking fasteners.

● Safe: adjustable spool rotation drag eliminates hose backlash when de-reeling. Lock pin prevents spool rotation when reel is not in use.

● Low maintenance: Dual main bearings never need lubrication.

● Shipped completely assembled, ready to install.


APPLICATIONS

● Air/water services

● Lawn care

● Pest control

● Agriculture

● Greenhouse

● Car wash

● Dairies

● Laboratories

● Hotels & Resorts

● Automotive &Fleet Service Centers


SPECIFICATIONS

Part number: AMSH280S

HOSE-ID. or CABLE-square :1/4"--3/8"

Pressure or Imax:16MPA

Working Length: 15M

Reel inlet: BSPT1/4“.F , BSPT3/8“.F

Hose outlet: BSPT1/4“.M ,BSPT1/2“.M


DIMENSIONS

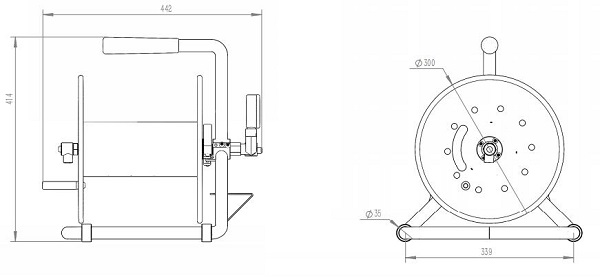

AMSH280S specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Hose outlet

A

B

C

D

E

F

G

H

I

J

K

AMSH280S0101160015

1

1/4"

16Mpa

15m

BSPT1/4“.F

BSPT1/4“.M

300

110

414

442

375

400

375

/

/

/

/

AMSH280S0103160015

1

3/8"

16Mpa

15m

BSPT3/8“.F

BSPT1/2“.M

290

165

379

206

300

150

260

120

220

4

9

Suitable for super flexible hose

Dimensions are in millimeters

Note:Consult us for other products and hoses.


PDF CATALOGUE

Garden hose reel  Home depot hose reel AMSH280S.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
