Oxygen acetylene hose reels are ideal solution for managing bulky twin line welding hose, increase safety in the work area with full flow shaft swivels.
The welding hose reels have a large frame to accommodate longer lengths of welding hose and increasd stability during operation,less vibration and greater structural integrity. Welding hose reels are design with full flow shaft swivels to improve safety in the welding work area with an increase in productivity and efficiency.
Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.
FEATURES
● Dual pedestal, heavy duty. Reel frame, spool and drum are fabricated of heavy gauge steel.
● Full flow shaft swivels. Double-sealed, "O" rings prevent leakage.
● Anti-lockout design：Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
● Superior performance：Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability.
● Corrosion resistant: Sealed bearings prevent contamination and minimize maintenance.
● Easy installation and maintenance：Factory lubricated one-piece power spring cassette make installation safer and maintenance easier.
● Adjustable and Versatile：Guide arm adjust to wall,floor,vehicle, overhead positions. Narrow design allows for maximum use of available space.

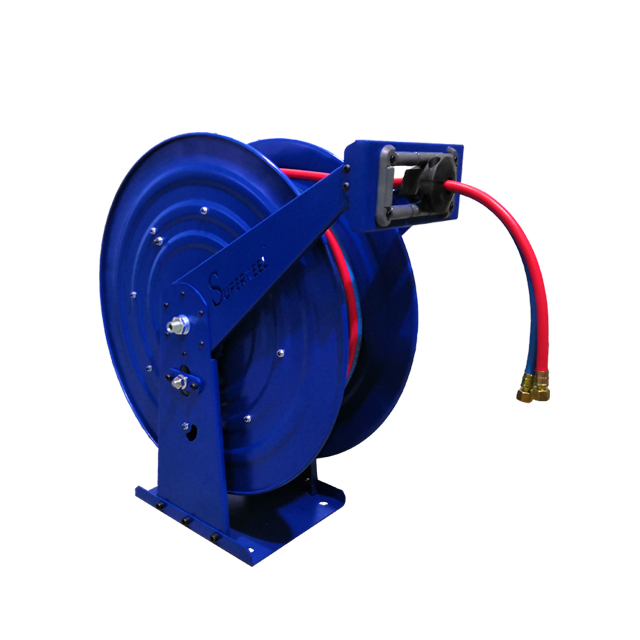

Oxygen acetylene and hose reels ASTH660D picture
DIMENSIONS
P/N | Port&core number | HOSE-ID. or CABLE-square | Pressure or Imax | Working Length | Reel inlet | Hose outlet | A | B | C | D | E | F | G | H | I | J | K |
ASTH660D0201016030 | 2 | 1/4" | 1.6Mpa | 30m | BSPT1/4“.F | BSPT1/4“.F | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASTH660D0202016030 | 2 | 5/16" | 1.6Mpa | 30m | BSPT3/8“.F | BSPT3/8“.F | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASTH660D0203016030 | 2 | 3/8" | 1.6Mpa | 30m | BSPT3/8“.F | BSPT3/8“.F | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
ASTH660D0204016030 | 2 | 1/2" | 1.6Mpa | 30m | BSPT1/2“.M | BSPT1/2“.M | 660 | 400 | 735 | 352 | 720 | 280 | 340 | 220 | 270 | 4 | 18 |
| Dimensions are in millimeters |
|
Note: Consult us for other products and hoses.
SPECIFICATIONS
Part number: ASTH660D
HOSE-ID. or CABLE-square ：1/4"--1/2"
Pressure or Imax：1.6MPA
Working Length: 30M
Reel inlet: BSPT1/4“.F--BSPT1/2“.M
Hose outlet: BSPT1/4“.F --BSPT1/2“.M
APPLICATIONS
● Welding
● Manufacturing Plants & Facilities
● Pneumatic Tools
● Mines
● Maintenance,Repair &Operations
● Automotive Repair Garages
● Mining, Construction & railroad operations
● General Industrial
OUR CAPABILITIES
● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.
● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.
● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.
● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.
