Electric cable reel | Large Shore power cord reel AESC1200D

Electric extension large cable/cord reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity.
  • AESC1200D

  • SUPERREEL

  • Automotive &Fleet Service Centers, Aircraft maintenance, Electric tools, Railroad, Construction sites

Availability:

Electric extension cord reels are powered by A.C. or D.C. electric motor, reels secure cable or cord at desire length. Heavy duty, industrial grade power sources. Reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity.


Shore power cable reel AESC1200D, large frame reels offers a heavy duty, durable solution to your cable and cord needs. Our welded steel frames, combined with an engineered swivel design and sturdy tie plates make ours large frame reels among the most dependable reels on the market.


Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.

Electric cable reel | Large motor cord reel design


FEATURES

● To handle live electric cable/cord.

● Powered by electric motor. Large frame.

● Silver alloy slip ring.

● IP44, IP54, IP65, IP68 available

● Durable abrasion and corrosion resistant baked-on power coat finish.

● Rugged construction:Steel drum and all bolted construction. Vibration-proof self-locking fasteners.

● Low maintenance: Dual main bearings never need lubrication.

● Compact for critical space requirements.

● Shipped completely assembled, ready to install.

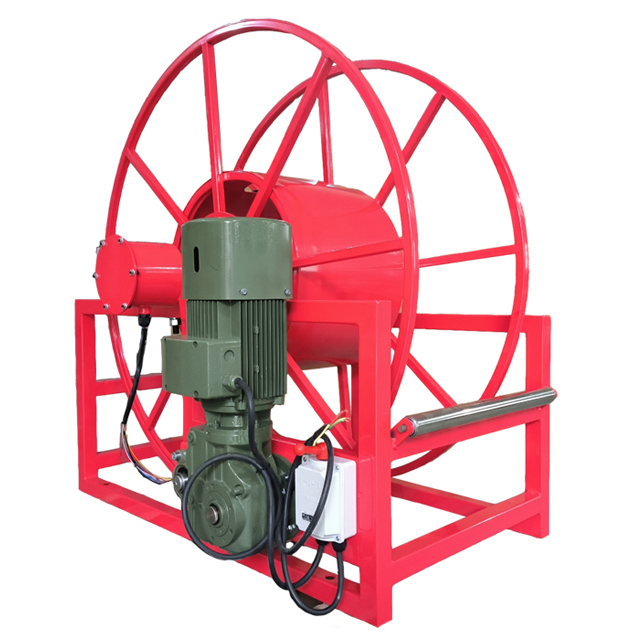

Electric cable reel | Electric extension cord reel AESC1200D PICTURE

Electric cable reel | Large motor cord reel AESC1200D PICTURE

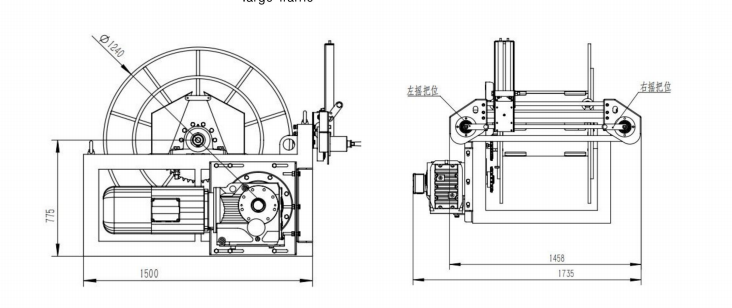

DIMENSIONS

AESC1200D specification

P/N

Port&core number

HOSE-ID. or CABLE-square

Pressure or Imax

Working Length

Reel inlet

Cable outlet

A

B

C

D

E

F

G

H

I

J

K

AESC1200D0415000080

4

75⊃2;

/

80m

Bare wire

Bare wire

1240

506

1395

1735

1867

1050

1500

700

1400

4

32

AESC1200D0416000060

4

95⊃2;

/

60m

Bare wire

Bare wire

1240

506

1395

1735

1867

1050

1500

700

1400

4

32

AESC1200D0417000050

4

120⊃2;

/

50m

Bare wire

Bare wire

1240

506

1395

1735

1867

1050

1500

700

1400

4

32


Dimensions are in millimeters

Note:Consult us for other products and reels. Roller guides, limit device, remote control, speed control, automatic pipe arrangement and voltages (standard is 220VAC) are optional items.


SPECIFICATIONS

Part number: AESC1200D

HOSE-ID. or CABLE-square :75⊃2;--120⊃2;

Pressure or Imax://

Working Length: 80M

Reel inlet: Bare wire

Cable outlet:Bare wire


APPLICATIONS

● Steel mills & Foundries

● Automotive &Fleet Service Centers

● Tire stores

● Aircraft maintenance

● Electric tools

● Transmission shops

● Railroad

● Construction sites

● Garages


Electric cable reel | Large motor cord reel application


OUR CAPABILITIES


Electric cable reel | Large motor cord reel certificate


● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.

● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.

● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.

● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.


PDF CATALOGUE

Electric cable reel  Large motor cord reel AESC1200D.pdf


QUALITY CONTROL

● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.

● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.

● File system: perfect file system, products traceability;

● Engineer participation:  The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.


FAQ

Q: Are you the manufacturer?

A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.


Q: How strong is your product?

A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.


Q: How do i get the right reels?

A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.

 2) Do You Need a Storage or Live Reel?

 3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.

Rewind options are available for manual, spring, electric, air or hydraulic rewinds.

Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.

 4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.


Q: How high should I mount a reel?

A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.


Q: Do you have MOQ?

A: No, order from 1 to as many as you need.
