AESC270D
SUPERREEL
Transmission, Railroad, Construction sites, Electric tools
Availability: | |
---|---|
Electrical cord reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity.
Retractable power cord reel AESC270D powered by electric motor. To handle live electric cable/cord. Auto-distribution. Steel drum and all bolted construction. Vibration-proof self-locking fasteners. Adjustable bumper stop allow any desired length of cord or cable to be maintained outside the reel.
Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.

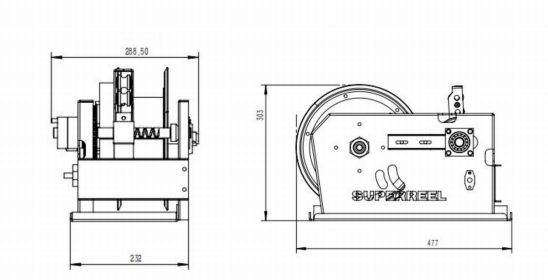

Electrical cord reel | Retractable power cord reel AESC270D PICTURE
P/N | Port&core number | HOSE-ID. or CABLE-square | Pressure or Imax | Working Length | Reel inlet | Cable outlet | A | B | C | D | E | F | G | H | I | J | K |
AESC270D0405010015 | 4 | 1.5² | 10A | 15m | Bare wire | Bare wire | 270 | 120 | 345 | 288 | 477 | 232 | 460 | 90 | 405 | 4 | 11 |
AESC270D0408030010 | 4 | 4² | 30A | 10m | Bare wire | Bare wire | 270 | 120 | 345 | 288 | 477 | 232 | 460 | 90 | 405 | 4 | 11 |
Suitable for super flexible cable | Dimensions are in millimeters | ||||||||||||||||
Note:Consult us for other products and reels.
Part number: AESC270D
HOSE-ID. or CABLE-square :1.5²--4²
Pressure or Imax:10A--30A
Working Length: 15M
Reel inlet: Bare wire
Cable outlet:Bare wire
● Steel mills & Foundries
● Automotive &Fleet Service Centers
● Tire stores
● Aircraft maintenance
● Electric tools
● Transmission shops
● Railroad
● Construction sites
● Garages
● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.
● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.
● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.
● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.
Electrical cord reel USB cord reel AESC270D.pdf
● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.
● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.
● File system: perfect file system, products traceability;
● Engineer participation: The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.
Q: Are you the manufacturer?
A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.
Q: How strong is your product?
A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.
Q: How do i get the right reels?
A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.
2) Do You Need a Storage or Live Reel?
3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.
Rewind options are available for manual, spring, electric, air or hydraulic rewinds.
Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.
4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.
Q: How high should I mount a reel?
A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.
Q: Do you have MOQ?
A: No, order from 1 to as many as you need.
Electrical cord reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity.
Retractable power cord reel AESC270D powered by electric motor. To handle live electric cable/cord. Auto-distribution. Steel drum and all bolted construction. Vibration-proof self-locking fasteners. Adjustable bumper stop allow any desired length of cord or cable to be maintained outside the reel.
Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.
Electrical cord reel | Retractable power cord reel AESC270D PICTURE
P/N | Port&core number | HOSE-ID. or CABLE-square | Pressure or Imax | Working Length | Reel inlet | Cable outlet | A | B | C | D | E | F | G | H | I | J | K |
AESC270D0405010015 | 4 | 1.5² | 10A | 15m | Bare wire | Bare wire | 270 | 120 | 345 | 288 | 477 | 232 | 460 | 90 | 405 | 4 | 11 |
AESC270D0408030010 | 4 | 4² | 30A | 10m | Bare wire | Bare wire | 270 | 120 | 345 | 288 | 477 | 232 | 460 | 90 | 405 | 4 | 11 |
Suitable for super flexible cable | Dimensions are in millimeters | ||||||||||||||||
Note:Consult us for other products and reels.
Part number: AESC270D
HOSE-ID. or CABLE-square :1.5²--4²
Pressure or Imax:10A--30A
Working Length: 15M
Reel inlet: Bare wire
Cable outlet:Bare wire
● Steel mills & Foundries
● Automotive &Fleet Service Centers
● Tire stores
● Aircraft maintenance
● Electric tools
● Transmission shops
● Railroad
● Construction sites
● Garages
● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.
● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.
● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.
● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.
Electrical cord reel USB cord reel AESC270D.pdf
● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.
● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.
● File system: perfect file system, products traceability;
● Engineer participation: The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.
Q: Are you the manufacturer?
A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.
Q: How strong is your product?
A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.
Q: How do i get the right reels?
A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.
2) Do You Need a Storage or Live Reel?
3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.
Rewind options are available for manual, spring, electric, air or hydraulic rewinds.
Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.
4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.
Q: How high should I mount a reel?
A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.
Q: Do you have MOQ?
A: No, order from 1 to as many as you need.
