Industrial motorized extension cable/cord reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity.
Motorized cable reel to handle live electric cable/cord via silver alloy slip ring.Steel drum and all bolted construction. Vibration-proof self-locking fasteners. Widely used for Automotive &Fleet Service Centers,Electric tools,Transmission shops...
Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization.
FEATURES
● To handle live electric cable/cord.
● Powered by electric motor. Economical series.
● Silver alloy slip ring.
● IP44, IP54, IP65, IP68 available
● Durable abrasion and corrosion resistant baked-on power coat finish.
● Rugged construction：Steel drum and all bolted construction. Vibration-proof self-locking fasteners.
● Low maintenance: Dual main bearings never need lubrication.
● Compact for critical space requirements.
● Shipped completely assembled, ready to install.

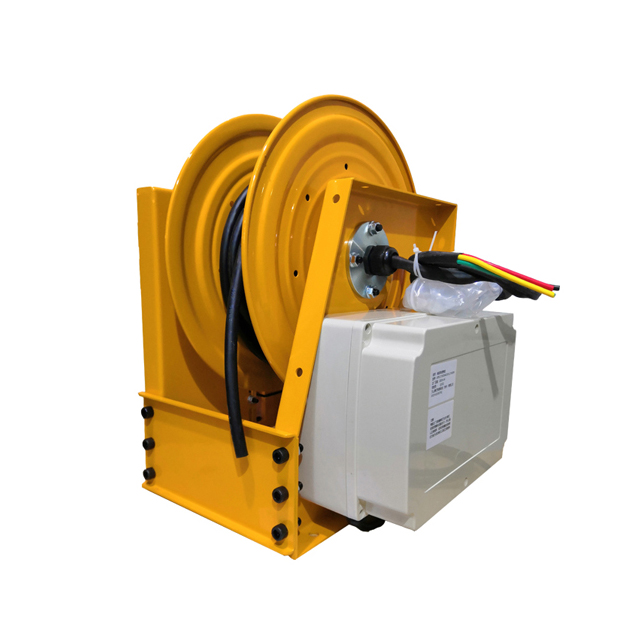

Industrial extension cord reel | Motorized cable reel AESC390D PICTURE
DIMENSIONS
P/N | Port&core number | HOSE-ID. or CABLE-square | Pressure or Imax | Working Length | Reel inlet | Cable outlet | A | B | C | D | E | F | G | H | I | J | K |
AESC390D0406020060 | 4 | 2.5² | 20A | 60m | Bare wire | Bare wire | 375 | 140 | 389 | 460 | 372 | 350 | 140 | 320 | 110 | 4 | 11 |
AESC390D0408030050 | 4 | 4² | 30A | 50m | Bare wire | Bare wire | 375 | 140 | 389 | 460 | 372 | 350 | 140 | 320 | 110 | 4 | 11 |
AESC390D0409050040 | 4 | 6² | 50A | 40m | Bare wire | Bare wire | 375 | 140 | 389 | 460 | 372 | 350 | 140 | 320 | 110 | 4 | 11 |
| Dimensions are in millimeters |
|
Note:Consult us for other products and reels. Roller guides, limit device, remote control, speed control, automatic pipe arrangement and voltages (standard is 220VAC) are optional items.
SPECIFICATIONS
Part number: AESC390D
HOSE-ID. or CABLE-square ：2.5²--6²
Pressure or Imax：20A--50A
Working Length: 60M
Reel inlet: Bare wire
Cable outlet:Bare wire
APPLICATIONS
● Steel mills & Foundries
● Automotive &Fleet Service Centers
● Tire stores
● Aircraft maintenance
● Electric tools
● Transmission shops
● Railroad
● Construction sites
● Garages
OUR CAPABILITIES
● Ultra-high pressure and high current, the highest pressure of gas and liquid up to 80-100MPA. Taking advantage of the National New Energy Policy, the maximum current of the DC charging reel can reach to 500A.
● Super-long. Spring-driven reels can handle hoses or cables up to 50 meters. Motor-driven reels' capacity up to 3000 meters.
● Engineering reciprocation. One of the few domestic manufacturers that can produce reciprocating hose reels and multi-line hydraulic reels.
● Smart reels with intelligent functions. Limit, feedback, measurement, remote control, APP control, adaptive control and other functions are used in our reels.
● Hose and cable combined reels. One reel can manage/ transmit media including acousto-optic signals, various gas-liquid media, etc, at the same time.
PDF CATALOGUE
Automatic extension cord reel Motorized cable reel AESC390D.pdf
QUALITY CONTROL
● Testing equipment: Standardized electrical, gas, water, oil, high, medium and low pressure testing tools are fully equipped; sealing and torque testing match each set of products.
● Risk aversion. The reels mold rate is high, that is, the reels consistency is high, and the risk point is avoided from the beginning of design.
● File system: perfect file system, products traceability;
● Engineer participation: The unique working environment and mechanism of Resan Company encourage engineers to participate in and follow up the production process in the whole process, find and solve problems, and upgrade the reels in time.
FAQ
Q: Are you the manufacturer？
A: Yes! Superreel is the original all-purpose reel for which we own the patent and manufacturing rights.
Q: How strong is your product？
A: Reels with all-steel construction. Reel drive springs manufactured from high-quality, scaleless blue tempered steel. Non corrosive stainless steel spring, pawl & zinc plated ratchet. So, it is seriously strong and sturdy enough all your jobs.
Q: How do i get the right reels？
A:1) The first thing to consider is what kind of hose or cable you will be using. Size, length, bend radius, and type are critical when it comes to purchasing the correct reel for the job.
2) Do You Need a Storage or Live Reel?
3) How and Where Will the Reel Be Used? Rewind type, mounting positions, and roller options will determine which reel model will best fit your needs.
Rewind options are available for manual, spring, electric, air or hydraulic rewinds.
Reels can be floor-, ceiling-, wall-, cabinet- or truck- mounted and optional roller packages are available to help guide hose easily back on to the reel from any position.
4) If you cannot find exactly what you are looking for, you can email us at sales@superreel.com and we'll help you find the right reel.
Q: How high should I mount a reel?
A: There is no minimum height required for mounting. The ideal height is to have the opening in line with where the hand of the user will be, but this is only a guideline.
Q: Do you have MOQ?
A: No, order from 1 to as many as you need.
